Connector D-sub - Connector D Sub male angled 7 2 mm standard PIN 37 THT 5A

Κωδικός: 11864

DHP8-37M PDF

DHP8-37M

Τιμή χωρίς ΦΠΑ:  0.93 €
Αξία ΦΠΑ:  0.22 €
Τελική με ΦΠΑ:  1.15 €
Ποσότητα:
* Αποστολή σε 1 εργάσιμη ημέρα.
Specifications
Manufacturer NINIGI
Connector socket
Connector type D-Sub
Number of pins 37
Connector type male
Connector variant 7,2mm standard
Locking system screws
Spatial orientation angled 90°
Electrical mounting THT
Thread UNC4-40
Operating temperature 55...105°C
Rated current 5A
Max. contact resistance: 15mΩ

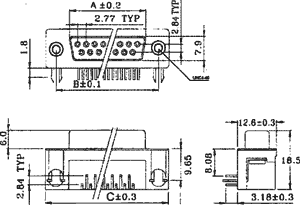

A dimension 55mm
B dimension 63mm
C dimension 69mm
Dimensions  VIEW

Διαθεσιμότητα: Αμεσα
