Ferrite - Coilformer with pins vertical Mat plastic Mounting THT

Prod code: 14288

WE-3693

Price:  2.66 €
VAT:  0.64 €
Final price with tax:  3.30 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer WEISSER
Coilformer type with pins
Application ETD54-3C90, ETD54-3F3
Material plastic
Mounting THT
H dimension 43.4mm
X1 dimension 55.88mm
X2 dimension 45.72mm
Type of pin configuration 2x12
Flammability rating UL94HB

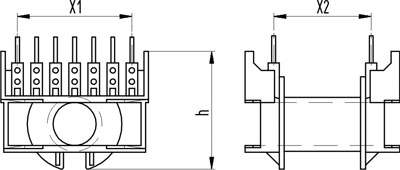

Dimensions  VIEW

Availability: With order
