Αποσβεστήρας κραδασμών - Vibration damper, M3, Ø 8mm, rubber, L 8mm, Thread len 6mm, H 3mm

Κωδικός: 36689

DVA2-8-8-M3 PDF

DVA2-8-8-M3

Τιμή χωρίς ΦΠΑ:  1.39 €
Αξία ΦΠΑ:  0.33 €
Τελική με ΦΠΑ:  1.73 €
Ποσότητα:
* Αποστολή σε 1 εργάσιμη ημέρα.
Specifications
Manufacturer ELESA+GANTER
Type of mounting element vibration damper
Thread M3
Diameter 8mm
Body material rubber
Spacer length 8mm
Thread length 6mm
H dimension 3mm
Shore hardness 55±5
Static load 75N
Stiffness 38N/mm
Plunger material steel

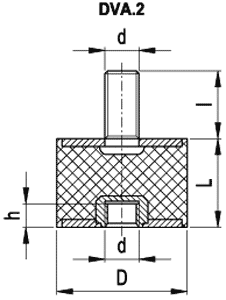

Dimensions  VIEW
Gross weight 1.22 g

Διαθεσιμότητα: Αμεσα
