Specifications |
| Manufacturer |
DEGSON ELECTRONICS |
| Connector type |
terminal block |
| Connector variant |
with push button |
| Spatial orientation |
angled 90° |
| Max cable section |
1.5mm2 |
| Number of ways |
2 |
| Contact plating |
tinned |
| Rated current |
15A |
| Flammability rating |
UL94V-0 |
| Colour |
grey |
| Contact material |
phosphor bronze |
| Rated voltage |
250V |
| Body material |
polyamide |
| Electrical mounting |
THT, spring clamp |
| Connectors features |
assembling possibility |
| Length |
10mm |
| Height |
15.5mm |
| Operating temperature |
40...105°C |
| Depth |
12.5mm |
| Conform to the norm |
CE |

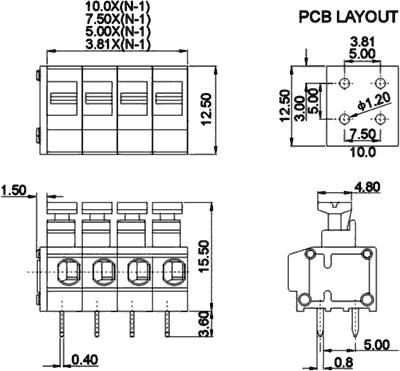

| Dimensions |
 VIEW |
| |
|
