Button - Switch vandal resistant, 1-position, SPST-NO, 2A/36VDC, IP65

Prod code: 20088

V12-10-S
Price:  4.78 €
VAT:  1.15 €
Final price with tax:  5.92 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer ONPOW
Switch type vandal resistant
Stable positions number 1-position
Contacts configuration SPST-NO
DC contacts rating 2 A / 36 VDC
Sealing IP65
Switching method OFF-(ON)
Leads screw terminals
Operating temperature 20...55°C
Electrical life 200000cycles
Max. contact resistance: 50mΩ
Switching torque 5N
Mechanical durability 1000000cycles
Mounting hole diameter 12mm
Body colour silver
Button shape convex
Body material stainless steel
Test voltage 2kV
Contact material silver alloy

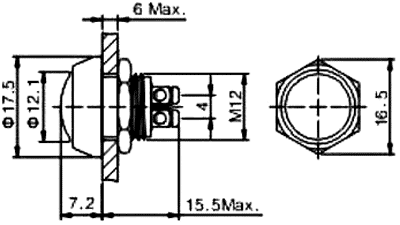

Dimensions  VIEW

Availability: On stock
