Μπουτόν - Switch push-button, Pos 2, SPST-NO, 3A/125VAC, OFF-(ON), Ø12mm

Κωδικός: 42439

PS-06R-MONO

Τιμή χωρίς ΦΠΑ:  0.54 €
Αξία ΦΠΑ:  0.13 €
Τελική με ΦΠΑ:  0.67 €
Ποσότητα:
* Αποστολή σε 1 εργάσιμη ημέρα.
Specifications
ManufacturerNINIGI
Type of switchpush-button
Number of positions2
Stable positions number1
Contacts configurationSPST-NO
AC contacts rating @R3A / 125V AC
Switching methodOFF-(ON)
Illuminationnone
Leadsfor soldering
Electrical life50000 cycles
Max. contact resistance:20mΩ
Mechanical durability100000 cycles
Button shapesquare
Mounting hole diameterØ12mm
Body colourblack
Actuator colourred
Mountingon panel
Operating temperature-25...70°C

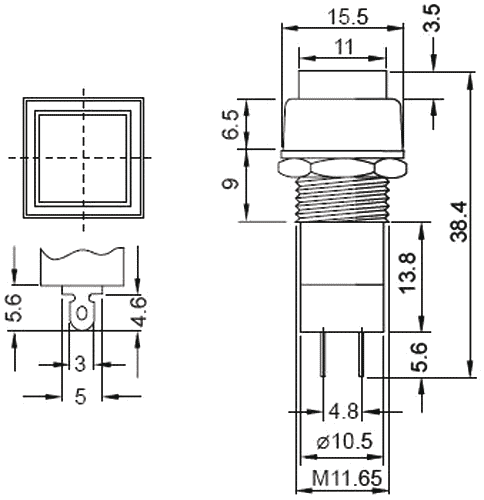

Dimensions VIEW
Διαθεσιμότητα: Αμεσα
