Tact Switch - Switch microswitch monostable DC load:0.1A/30V LED THT

Κωδικός: 10325

PB61302BL-3-101 PDF

PB61302BL-3-101

Τιμή χωρίς ΦΠΑ:  2.31 €
Αξία ΦΠΑ:  0.55 €
Τελική με ΦΠΑ:  2.86 €
Ποσότητα:
* Αποστολή σε 1 εργάσιμη ημέρα.
Specifications
Manufacturer HIGHLY
Switch type microswitch
Stable positions number 1-position
Contacts configuration DPDT
DC contacts rating 0.1 A / 30 VDC
Mounting THT
Illumination LED
Backlight colour green
Switching torque 1.5N
Body dimensions 10 x 10mm
Button height 19.8mm
Switching method ON-(ON)
Button shape round
Terminal pitch 2.54x5.08mm
Operating temperature 10...80°C
Actuator colour silver
Leads for PCB, straight
Max. contact resistance: 50mΩ
Min. insulation resistance 100MΩ
Electrical life 10000cycles

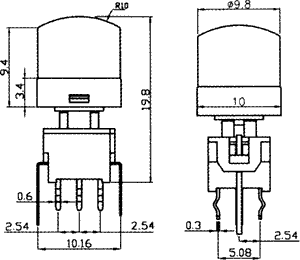

Dimensions  VIEW
Output configuration  VIEW

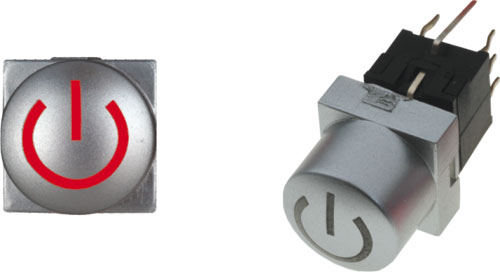

Picture of product  VIEW
Contacts layout  VIEW

Διαθεσιμότητα: Αμεσα
