DIP-SWITCH - Switch DIP SWITCH Poles number 4 ON OFF 0.1A/50VDC 25÷70°C

Prod code: 14793
ESD104E PDF

ESD104E
Price:  1.27 €
VAT:  0.30 €
Final price with tax:  1.57 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer DIPTRONICS
Switch type DIP-SWITCH
Poles number 4
Switching method ON-OFF
DC contacts rating 0.1 A / 50 VDC
Terminal pitch 2.54mm
Operating temperature 25...70°C
Overall length 10.12mm
Row pitch 7.4mm
Mounting SMT
Switches features raised actuator
Min. insulation resistance 1000MÙ
Contact plating gold plated
Mechanical durability 2000cycles
Contact material copper alloy
Max. contact resistance: 50mÙ
Flammability rating UL94V-0
Soldering temperature 230°C / 30 s
Switching torque 7.8N
Body colour black

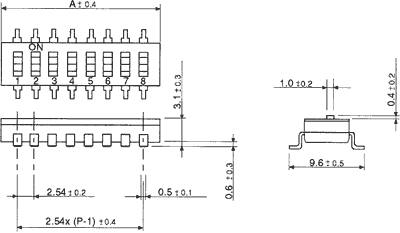

Dimensions  VIEW

Availability: On stock
