Connector N type - Socket, N, female, straight, 50Ù, soldering, teflon, gold-plated
Prod code:
30854
PDF
N6551A1NT3G50
Click to enlarge
Price:
5.41 €
VAT:
1.30 €
Final price with tax:
6.71 €
Amount:
Usually shipped within 1 business day.
Usually shipped within 1 business day.
Specifications
Manufacturer
AMPHENOL
Connector
socket
Type of connector
N
Kind of connector
female
Spatial orientation
straight
Wave impedance
50Ω
Electrical mounting
soldering
Mechanical mounting
flange (4 holes),
Insulator material
teflon
Contact plating
gold-plated
Standing wave-ratio
1.3
Max. frequency
11GHz
Max. operating voltage
1.5kV

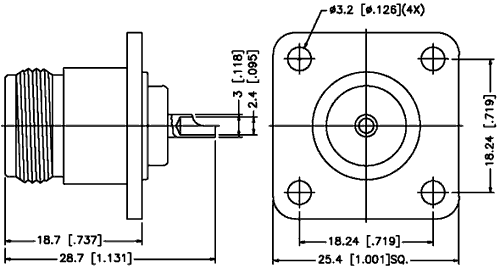

Dimensions
VIEW
Gross weight
31.2 g
Availability:
On stock
