Αισθητήρας Hall - Sensor Hall, rotary position sensor, Range 180° (±90°), IP67

Κωδικός: 29254

RTY180HVEAX PDF

RTY180HVEAX

Τιμή χωρίς ΦΠΑ:  130.82 €
Αξία ΦΠΑ:  31.40 €
Τελική με ΦΠΑ:  162.22 €
Ποσότητα:
Προειδοποίηση Μεγάλος χρόνος παράδοσης
Specifications
Manufacturer HONEYWELL
Sensor type Hall
Sensor type rotary position sensor
Measuring range 180° (±90°)
Supply voltage 10...30V DC
Operating temperature 40...125°C
Sealing IP67
Voltage output 0,5...4,5V
Associated items AMP-0-0282087-1
Plug variant EU

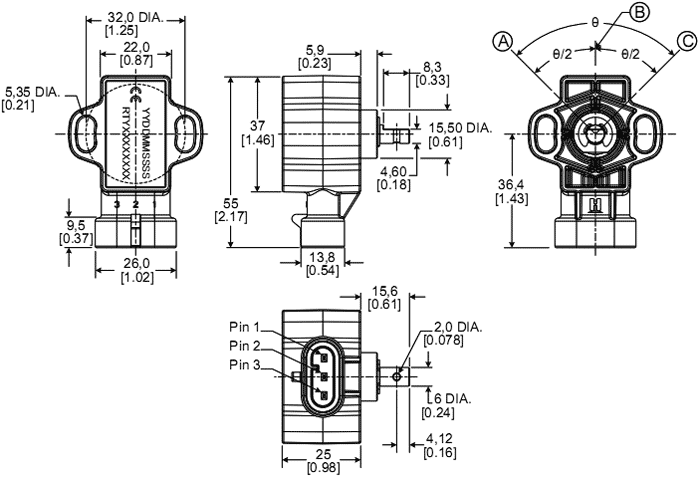

Dimensions  VIEW

Διαθεσιμότητα: Με παραγγελία
