Screw - Screw, M5x10, DIN 912, Head cheese head, imbus, steel, HEX 4 mm

Prod code: 29514

B5X10/BN272 PDF

B5X10/BN272

Price:  0.06 €
VAT:  0.01 €
Final price with tax:  0.07 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer BOSSARD
Type of mounting element screw
DIN standard 912
Thread M5
Length 10mm
Kind of Head cheese head
Type of cut imbus
Material steel
Plating material black finish
Head height 5mm
Cut size HEX 4 mm
Head diameter 8.5mm
BN standard 272
ISO standard 4762
PN standard 82302
Strength class 8.8
Thread pitch 0,8

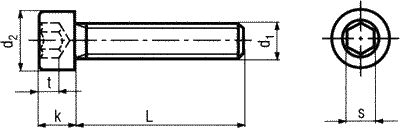

Dimensions  VIEW

Availability: With order
