Äéáêüðôçò - ROCKER, DPDT, Positions 2, ON-ON, 6A/250VAC, black, none, 50mÙ

Prod code: 32206

RS136B PDF

RS136B

Price:  3.00 €
VAT:  0.72 €
Final price with tax:  3.72 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer SCI
Type of switch ROCKER
Contacts configuration DPDT
Number of positions 2
Stable positions number 2-position
Switching method ON-ON
AC contacts rating @R 6A / 250V AC
Key button colour black
Illumination none
Max. contact resistance: 50mΩ
Body colour black
Operating temperature -20...85°C
Leads for soldering
Panel thickness max. 6mm
Electrical life 6000cycles
Mounting hole diameter Ø18.2mm
Button marking I-O
Backlight colour none
Shape rectangular
Manufacturer series R13-136-AC

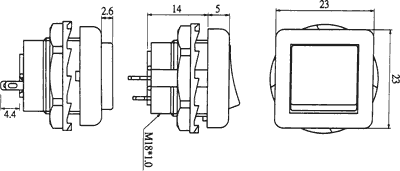

Dimensions  VIEW
Gross weight 7.45 g

Availability: On stock
