Äéáêüðôçò - ROCKER, 2-position, DPDT, ON-ON, 10A/250VAC, black, 50mÙ, UL94V-2

Prod code: 15478

RS13117CBB0 PDF

RS13117CBB0

Price:  2.72 €
VAT:  0.65 €
Final price with tax:  3.37 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer SCI
Switch type ROCKER
Stable positions number 2-position
Contacts configuration DPDT
Switching method ON-ON
AC contacts rating 10 A / 250 VAC
Key button colour black
Max. contact resistance: 50mÙ
Flammability rating UL94V-2
Operating temperature 20...85°C
Leads 6.3x0.8mm connectors
Panel thickness max 3mm
Electrical life 6000cycles
Mounting hole diameter 30.4 x 22.2mm
Number of positions 2
Button marking blank
Body material polyamide

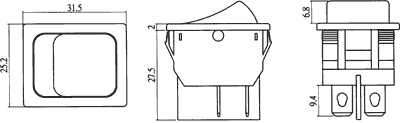

Dimensions  VIEW

Availability: On stock
