Power resistor - Resistor wire-wound with heatsink, screwed, 100Ù, 100W, ±5%

Prod code: 25880
AX100WR-100R PDF

AX100WR-100R
Price:  8.92 €
VAT:  2.14 €
Final price with tax:  11.06 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer TE Connectivity
Resistor type wire-wound with heatsink
Mounting screwed
Resistance 100Ω
Power 100W
Tolerance ±5%
Max. operating voltage 1.9kV
Body dimensions 65.5 x 47.5 x 26mm
Operating temperature 55...250°C
Temperature coefficient 50ppm/°C
Resistor features needs additional heatsink
Leads for soldering
Mounting holes pitch 37 x 35mm
Power without heatsink 50W
Number of mounting holes 4
Recommended heatsink thickness 3 mm, 99500 mm2 surface area

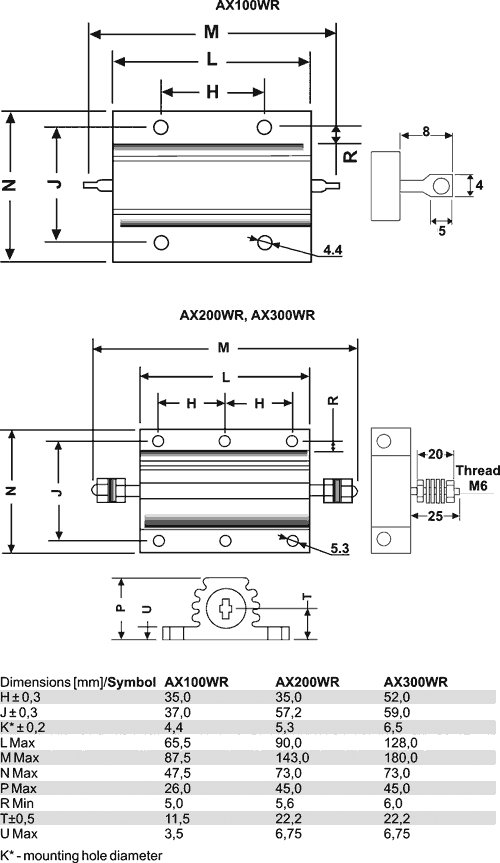

Dimensions  VIEW

Availability: With order
