Power resistor - Resistor wire-wound, with heatsink, screw, 1Ù, 100W, ±5%, 50ppm/°C

Prod code: 37768

AX100WR-1R PDF

AX100WR-1R

Price:  9.36 €
VAT:  2.25 €
Final price with tax:  11.61 €
Amount:
Warning Long delivery time
Specifications
Manufacturer TE Connectivity
Type of resistor wire-wound
Kind of resistor with heatsink
Mounting screw
Resistance
Power 100W
Tolerance ±5%
Max. operating voltage 1.9kV
Body dimensions 65.5x47.5x26mm
Operating temperature -55...250°C
Resistor features needs additional heatsink
Temperature coefficient 50ppm/°C
Leads for soldering
Mounting holes pitch 37x35mm
Power without heatsink 50W
Number of mounting holes 4
Recommended heatsink 99500mm2 surface area,   thickness 3mm

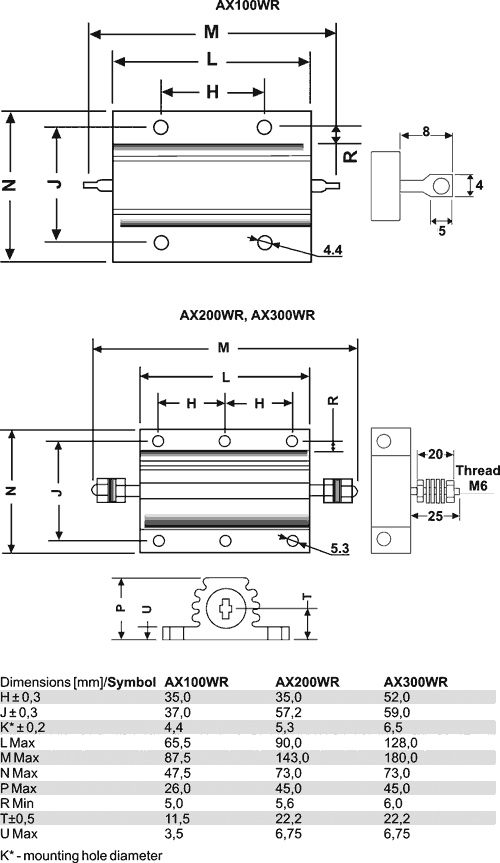

Dimensions  VIEW
Gross weight 100.77 g

Availability: With order
