Specifications |
| Manufacturer |
TE Connectivity |
| Relay type |
electromagnetic |
| Contacts configuration |
SPST-NO |
| Coil voltage min. |
9V DC |
| Rated coil voltage |
12V DC |
| Contact current max. |
30A |
| Relay series |
T9A |
| Relay variant |
power |
| Operating temperature |
55...85°C |
| Mounting |
PCB |
| Coil resistance |
144Ω |
| Switched voltage |
max 277V AC, max 28V DC |
| Coil power consumption |
1W |
| DC contacts rating |
20 A / 280 VDC |
| Contact resistance |
75mΩ |
| Leads |
for PCB |
| Body dimensions |
32.5 x 27.4 x 27.9mm |
| AC contacts rating |
30 A / 240 VAC |
| Contact material |
AgCdO |
| Mechanical durability |
10000000cycles |

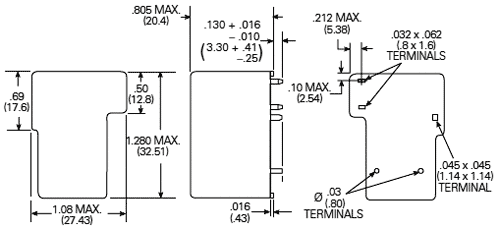

| Dimensions |
 VIEW |

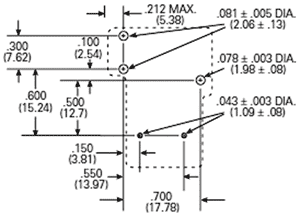

| Output configuration |
VIEW |
| |
|
