Relay SPDT 80/70A DC12V terminals - 3.80 EUR : acdcshop.gr


Ηλεκτρονόμος πλακέτας - Relay SPDT 80/70A DC12V terminals	Κωδικός: 1529
PDF	AM3-12CF

Κάντε Κλικ για Μεγέθυνση Relay SPDT 80/70A DC12V terminals

Specifications
Manufacturer	RAYEX ELECTRONIC
Relay type	electromagnetic
Contacts configuration	SPDT
Rated coil voltage	12V DC
Contact current max.	80A
DC contacts rating	60 A / 14 VDC
Relay variant	automotive
Coil resistance	72Ω
Contact material	AgCdO
Operating temperature	40...85°C
Relay series	AM3
Body dimensions	28 x 28 x 25mm
Mounting	on panel
Coil power consumption	1.8W
Coil current	167mA
Contact resistance	50mΩ
Leads	6.3x0.8mm connectors, 9.5x1.2mm connectors
Operate time	7ms
Release time	5ms

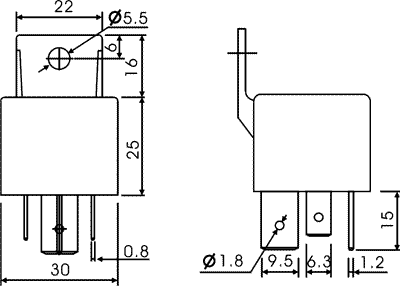

Dimensions	VIEW
Output configuration	VIEW

Διαθεσιμότητα: Με παραγγελία
