Relays PCB - Relay electromagnetic, SPST-NO, Ucoil 12VDC, 20A/125VAC, 20A
Prod code:
38178
PDF
HF152FD/012-1H
Click to enlarge
Price:
2.16 €
VAT:
0.52 €
Final price with tax:
2.67 €
Amount:
Usually shipped within 1 business day.
Usually shipped within 1 business day.
Specifications
Manufacturer
HONGFA RELAY
Type of relay
electromagnetic
Contacts configuration
SPST-NO
Rated coil voltage
12V DC
AC contacts rating @R
20A / 125V AC
Contact current max.
20A
Switched voltage
max. 400V AC
Relay variant
subminiature
Mounting
PCB
Coil resistance
400Ω
Coil voltage min.
9V DC
Coil voltage max.
15.6V DC
Operate time
10ms
Body dimensions
21x16x20.6mm
Release time
5ms
Coil power consumption
360mW
Operating temperature
-40...105°C
Contact resistance
100mΩ
Contact material
AgNi

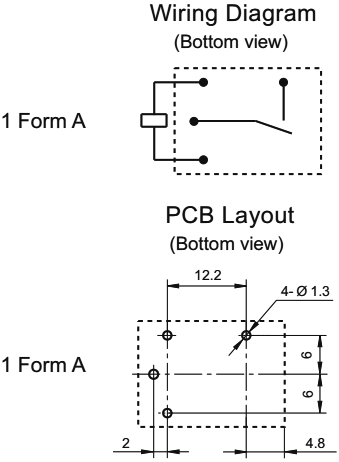

Dimensions
VIEW
Output configuration
VIEW
Gross weight
12.05 g
Availability:
On stock
