Relays PCB - Relay electromagnetic, SPDT, Ucoil 3VDC, 5A, 5A/250VAC, 5A/30VDC

Prod code: 41992
pe014f03.pdf PDF

PE014F03
Price:  5.58 €
VAT:  1.34 €
Final price with tax:  6.92 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer TE Connectivity
Type of relay electromagnetic
Contacts configuration SPDT
Rated coil voltage 3V DC
Contact current max. 5A
AC contacts rating @R 5A / 250V AC
DC contacts rating @R 5A / 30V DC
Relay series PE
Switched voltage max. 220V DC, max. 440V AC
Relay variant bistable, miniature
Mounting PCB
Coil resistance 41Ω
Body dimensions 20x10x10mm
Coil power consumption 200mW
Operating temperature -40...70°C
Contact material AgNi 90/10
Terminal pitch 7.62mm
Design single coil
Switching time 20ms
Polarisation A1 "+" , A2 "-" coil terminals
Switching capacity 1.25kVA

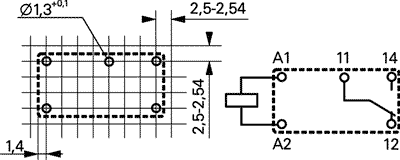

Output configuration  VIEW

Availability: With order
