Relays PCB - Relay electromagnetic, SPDT, Ucoil 24VDC, 6A/250VAC, 6A/24VDC, 6A

Prod code: 38145
RM699V-P-24 PDF

RM699V-P-24
Price:  5.44 €
VAT:  1.31 €
Final price with tax:  6.75 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer RELPOL
Type of relay electromagnetic
Contacts configuration SPDT
Rated coil voltage 24V DC
AC contacts rating @R 6A / 250V AC
DC contacts rating @R 6A / 24V DC
Contact current max. 6A
Switched voltage max. 24V DC,   max. 400V AC
Relay variant interface
Mounting PCB,   socket,   vertical
Coil resistance 3.39kΩ
Coil voltage min. 18V DC
Coil voltage max. 36V DC
Operate time 8ms
Body dimensions 28x5x15mm
Release time 4ms
Coil power consumption 170mW
IP rating IP64
Operating temperature -40...85°C
Relay series RM699B
Contact resistance 100mΩ
Contact material AgSnO2
Terminal pitch 5mm
Related items PI6W-1P,   PI6W-1P-24VDC
OEM number 2613666

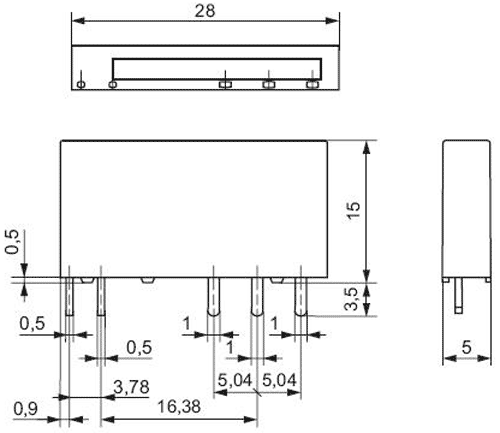

Dimensions  VIEW

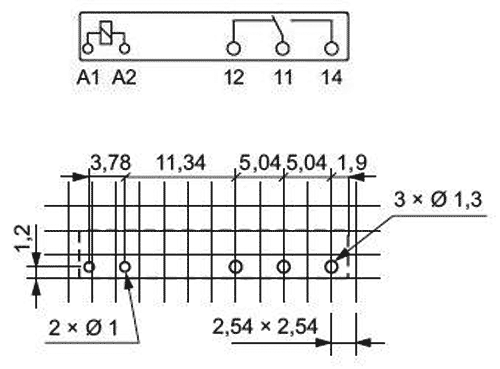

Leads  VIEW
Gross weight 5.1 g

Availability: On stock
