Relays PCB - Relay electromagnetic SPDT Ucoil 12VDC 5A/250VAC 5A/30VDC 5A

Prod code: 15565
RM40-P-12 PDF

RM40-P-12
Price:  2.73 €
VAT:  0.66 €
Final price with tax:  3.39 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer RELPOL
Relay type electromagnetic
Contacts configuration SPDT
Rated coil voltage 12V DC
AC contacts rating 5 A / 250 VAC
DC contacts rating 5 A / 30 VDC
Contact current max. 5A
Switched voltage max 30V DC, max 380V AC
Relay variant miniature
Mounting PCB
Coil resistance 720Ω
Operate time 8ms
Body dimensions 20 x 10 x 10.5mm
Release time 4ms
Coil power consumption 200mW
Sealing IP64
Operating temperature 40...85°C
Relay series RM40
Contact resistance 100mΩ
Contact material AgNi
Terminal pitch 7.62mm

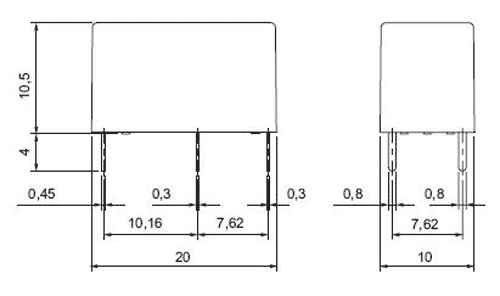

Dimensions  VIEW

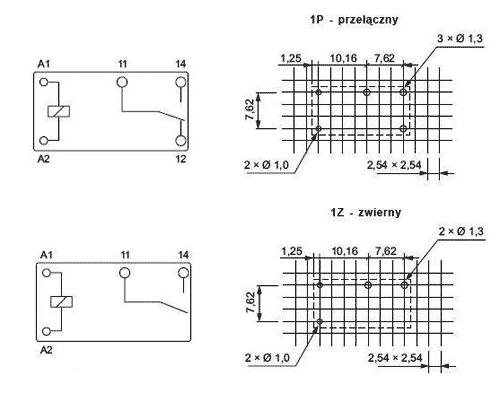

Leads  VIEW

Availability: On stock
