Relays PCB - Relay electromagnetic, SPDT, Ucoil 12VDC, 10A/240VAC, 15A/24VDC

Prod code: 37833
RM50-P-12 PDF

RM50-P-12
Price:  2.66 €
VAT:  0.64 €
Final price with tax:  3.30 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer RELPOL
Type of relay electromagnetic
Contacts configuration SPDT
Rated coil voltage 12V DC
AC contacts rating @R 10A / 240V AC
DC contacts rating @R 15A / 24V DC
Contact current max. 15A
Switched voltage max. 24V DC,   max. 277V AC
Relay variant miniature
Mounting PCB
Coil resistance 400Ω
Coil voltage min. 9V DC
Coil voltage max. 15.6V DC
Operate time 10ms
Body dimensions 19x15.4x15.5mm
Release time 5ms
Coil power consumption 360mW
IP rating IP64
Operating temperature -30...55°C
Relay series RM50
Contact resistance 100mΩ
Contact material AgSnO2
Terminal pitch 2mm
OEM number 2611655

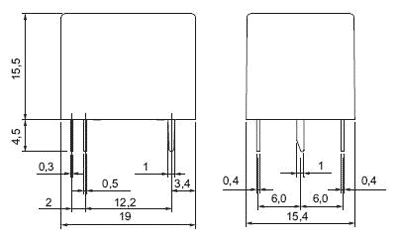

Dimensions  VIEW

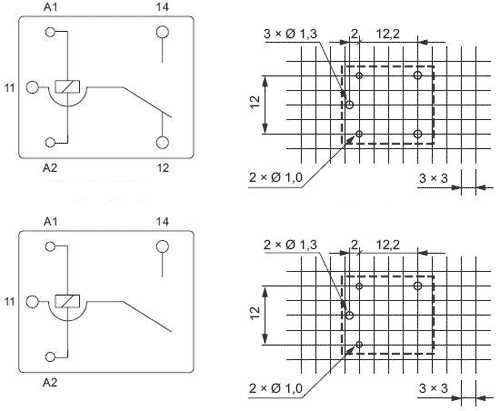

Leads  VIEW
Gross weight 8.975 g

Availability: With order
