Specifications |
| Manufacturer |
Recoy/RAYEX ELECTRONICS |
| Type of relay |
electromagnetic |
| Contacts configuration |
DPDT |
| Rated coil voltage |
3V DC |
| AC contacts rating @R |
5A / 250V AC |
| DC contacts rating @R |
5A / 30V DC |
| Contact current max. |
5A |
| Switched voltage |
max. 30V DC, max. 250V AC |
| Relay variant |
miniature |
| Mounting |
PCB |
| Coil resistance |
17Ω |
| Operate time |
15ms |
| Body dimensions |
29x15.5x12.5mm |
| Release time |
10ms |
| Coil power consumption |
530mW |
| Operating temperature |
-40...80°C |
| Relay series |
LMR2 |
| Contact resistance |
100mΩ |
| Contact material |
AgCdO |
| Terminal pitch |
5mm |
| Coil current |
176.5mA |

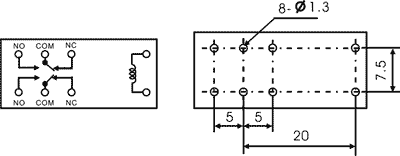

| Output configuration |
 VIEW |
| Gross weight |
11.33 g |
| |
|
