Relays PCB - Relay electromagnetic, DPDT, Ucoil 18VDC, 8A/250VAC, 8A/24VDC, 8A
Prod code:
22001
PDF
RM84-2012-35-1018
Click to enlarge
Price:
2.14 €
VAT:
0.51 €
Final price with tax:
2.65 €
Amount:
Usually shipped within 2-3 business days.
Usually shipped within 2-3 business days.
Specifications
Manufacturer
RELPOL
Relay type
electromagnetic
Contacts configuration
DPDT
Rated coil voltage
18V DC
AC contacts rating
8 A / 250 VAC
DC contacts rating
8 A / 24 VDC
Contact current max.
8A
Switched voltage
max 440V AC, max 250V DC
Relay variant
miniature
Mounting
PCB
Coil resistance
710Ω
Coil voltage min.
12.6V DC
Coil voltage max.
45.9V DC
Operate time
7ms
Body dimensions
29 x 12.7 x 15.7mm
Release time
3ms
Coil power consumption
480mW
Sealing
IP67
Mechanical durability
30000000cycles
Operating temperature
40...85°C
Weight
14g
Relay series
RM84
Contact resistance
100mΩ
Contact material
AgNi
Terminal pitch
5mm
Number of pins
8
Height
15.7mm

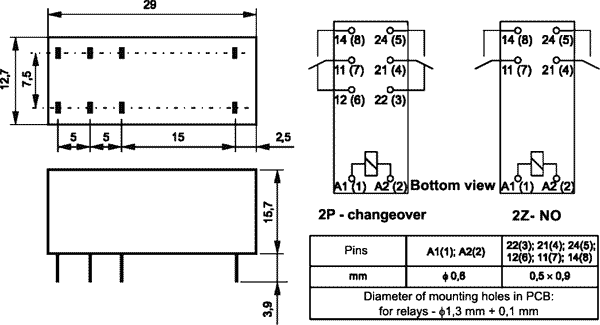

Dimensions
VIEW
