Relays PCB - Relay electromagnetic, DPDT, Ucoil 12VDC, 0.5A/120VAC, 1A/24VDC

Prod code: 17595
RY-12W-K PDF

RY-12W-K
Price:  2.14 €
VAT:  0.51 €
Final price with tax:  2.65 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer FUJITSU-TAKAMISAWA
Relay type electromagnetic
Contacts configuration DPDT
Rated coil voltage 12V DC
AC contacts rating 0.5 A / 120 VAC
DC contacts rating 1 A / 24 VDC
Contact current max. 1A
Switched voltage max 120V AC, max 60V DC
Relay variant miniature
Mounting PCB
Coil resistance 960Ù
Operate time 6ms
Body dimensions 20.2 x 9.8 x 12.5mm
Release time 3ms
Coil power consumption 150mW
Operating temperature 30...90°C
Relay series RY
Contact resistance 100mÙ
Contact material silver alloy
Terminal pitch 5mm
Contact plating gold plated

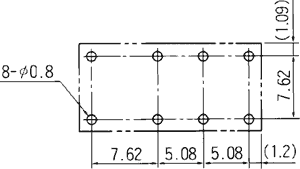

Dimensions  VIEW

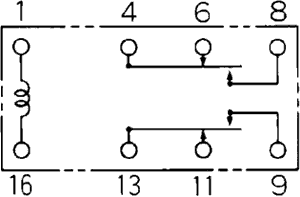

Schematic diagram  VIEW

Availability: With order
