Relays PCB - Relay DPDT 5A, AC110V 11mA

Prod code: 1483
G2R-2-110AC PDF

G2R-2-110AC
Price:  5.33 €
VAT:  1.28 €
Final price with tax:  6.61 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer OMRON
Relay type electromagnetic
Contacts configuration DPDT
Rated coil voltage 110V AC
AC contacts rating 5 A / 250 VAC
DC contacts rating 5 A / 30 VDC
Contact current max. 5A
Switched voltage max 380V AC, max 125V DC
Relay variant miniature
Mounting PCB
Coil resistance 4.6kÙ
Operate time 15ms
Body dimensions 29 x 13 x 25.5mm
Release time 10ms
Operating temperature 40...70°C
Relay series G2R
Contact resistance 50mÙ
Terminal pitch 5mm
Coil current 11mA
Enclosure description Standard seal
Leads for PCB
Associated items PODST-3

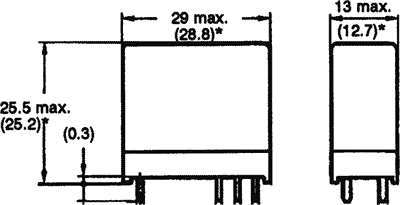

Dimensions  VIEW

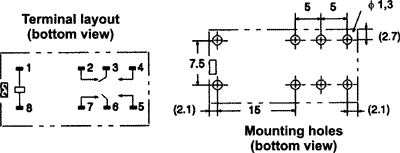

Output configuration  VIEW

Availability: On stock
