power supplies - Pwr sup.unit switched-mode, modular, 150W, 12VDC, 12.5A, 600g

Prod code: 26341

RSP-150-12 PDF

RSP-150-12

Price:  39.31 €
VAT:  9.43 €
Final price with tax:  48.75 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer MEAN WELL
Pwr sup. unit type switched-mode
Kind of power supply modular
Power 150W
Output voltage 12V DC, 11.4...13.2V DC
Output current 12.5A
Supply voltage 85...264V AC, 120...370V DC
Weight 600g
Electrical connection terminal block
Protection overload, overheating, voltage growth, short-circuit
Mounting for building in
Number of outputs 1
Operating temperature 30...70°C
Body dimensions 199 x 99 x 30mm
Power supply/converter features rated parameters obtained at full load
Efficiency 90%
Series RSP-150
Case type 215A
Additional functions active PFC
Associated items TBC-07

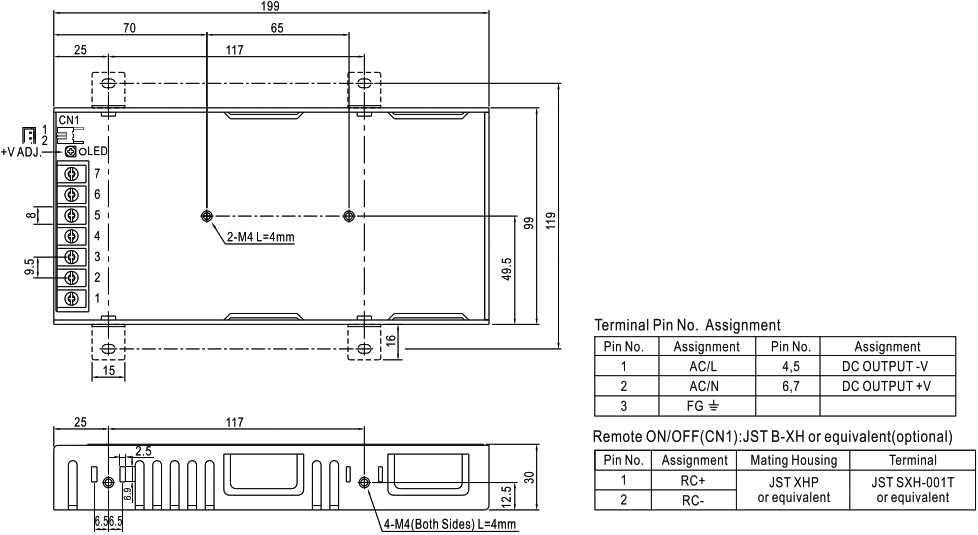

Dimensions  VIEW

Availability: With order
