Open Frame Power Supply - Pwr sup.unit pulse Outputs 3 Usup 90V AC÷264V AC Uout 5V

Prod code: 10721

PT-45A PDF

PT-45A

Price:  14.06 €
VAT:  3.37 €
Final price with tax:  17.43 €
Amount:
Contact us
Specifications
Manufacturer MEAN WELL
Pwr sup. unit type switched-mode
Power 40.5W
Supply voltage 120...370V DC, 90...264V AC
Number of outputs 3
Output voltage 5V DC
Output voltage 2 12V DC
Output voltage 3 5V DC
Output current 3A
Output current 2 2A
Output current 3 0.3A
Kind of power supply open
Power supply/converter features rated parameters obtained at full load
Mounting for building in
Operating temperature 10...60C
Protection overload, voltage growth, short-circuit
Weight 210g
Body dimensions 127 x 76.2 x 28mm
Efficiency 75%
Series PT-45
Electrical connection plug with 3,96mm pitch

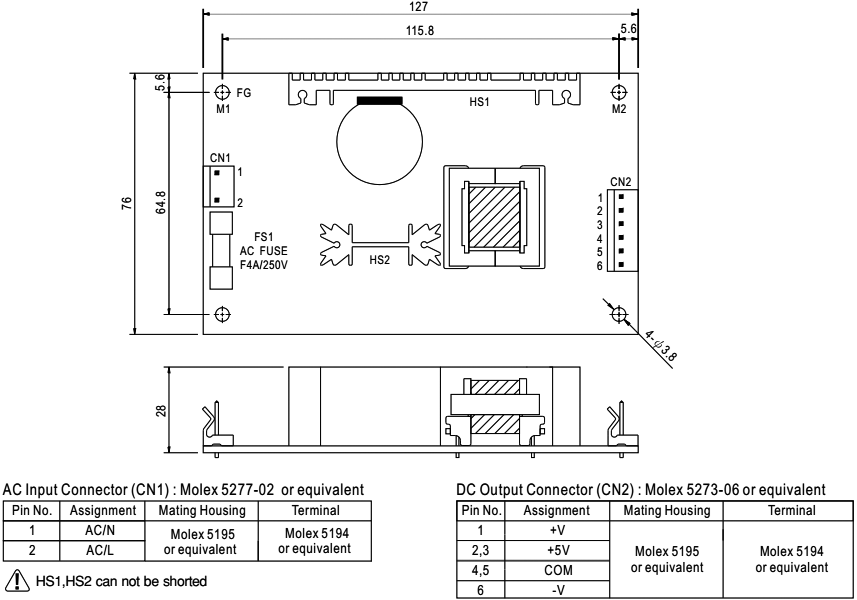

Dimensions  VIEW

Availability: With order
