Open Frame Power Supply - Pwr sup.unit pulse Outputs 1 Usup 90V AC÷264V AC Uout 48V

Prod code: 10747

LPP-100-48 PDF

LPP-100-48

Price:  31.15 €
VAT:  7.48 €
Final price with tax:  38.63 €
Amount:
Warning Long delivery time
Specifications
Manufacturer MEAN WELL
Pwr sup. unit type switched-mode
Power 100.8W
Supply voltage 120...370V DC, 90...264V AC
Number of outputs 1
Output voltage 48V DC, 45.6...52.8V DC
Output current 2.1A
Kind of power supply open
Power supply/converter features rated parameters obtained at full load
Mounting for building in
Operating temperature 10...60°C
Protection overload, voltage growth, short-circuit
Weight 510g
Body dimensions 222 x 62 x 32mm
Efficiency 83%
Series LPP-100
Electrical connection plug with 3,96mm pitch
Additional functions active PFC

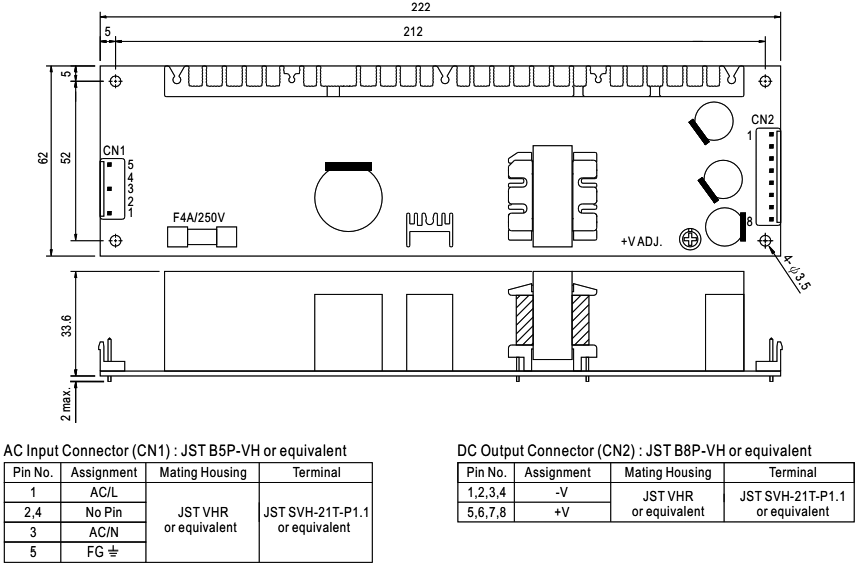

Dimensions  VIEW

Availability: With order
