Pwr sup.unit pulse Outputs 1 Usup 90V AC÷264V AC Uout 3.3V - 15.40 EUR : acdcshop.gr


Open Frame Power Supply - Pwr sup.unit pulse Outputs 1 Usup 90V AC÷264V AC Uout 3.3V	Prod code: 10724
PDF	PS-65-3.3

Click to enlarge Pwr sup.unit pulse Outputs 1 Usup 90V AC÷264V AC Uout 3.3V

Price:	15.40 €
VAT:	3.70 €
Final price with tax:	19.10 €
Amount:
Long delivery time Long delivery time

Specifications
Manufacturer	MEAN WELL
Pwr sup. unit type	switched-mode
Power	39.6W
Supply voltage	127...370V DC, 90...264V AC
Number of outputs	1
Output voltage	3.3V DC
Output current	12A
Kind of power supply	open
Power supply/converter features	rated parameters obtained at full load
Mounting	for building in
Operating temperature	10...60°C
Protection	overload, voltage growth, short-circuit
Weight	210g
Body dimensions	127 x 76 x 42mm
Efficiency	69%
Series	PS-65
Electrical connection	plug with 3,96mm pitch

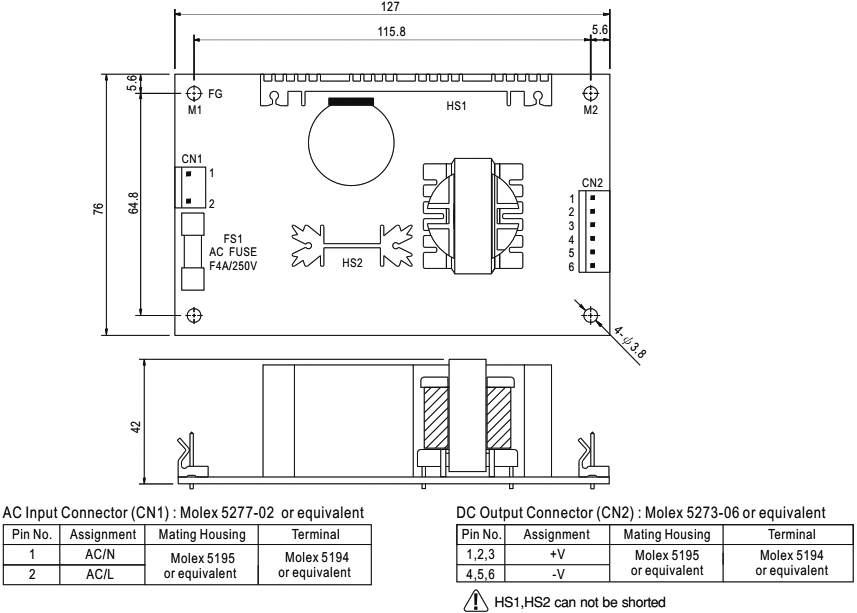

Dimensions	VIEW

Availability: With order
