power supplies - Pwr sup.unit pulse, 96W, 24VDC, 4A, 85....264VAC, 120....370VDC, 420g

Prod code: 210

MDR-100-24 PDF

MDR-100-24

Price:  35.59 €
VAT:  8.54 €
Final price with tax:  44.13 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer MEAN WELL
Pwr sup. unit type switched-mode
Power 96W
Output voltage 24V DC, 24...30V DC
Output current 4A
Supply voltage 120...370V DC, 85...264V AC
Electrical connection terminal block
Mounting DIN
Body dimensions 55 x 90 x 100mm
Weight 420g
Number of outputs 1
Operating temperature 20...70°C
Protection overload, overheating, overvoltage, short-circuit
Efficiency 86%
Additional functions output voltage correctness indication (NO contact)
Power supply/converter features rated parameters obtained at full load
Series MDR-100

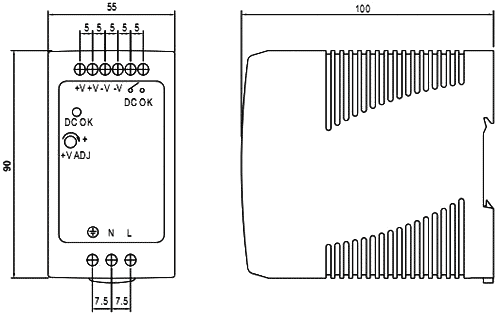

Dimensions  VIEW

Availability: On stock
