Pwr sup.unit pulse, 35.1W, 13.5VDC, -13.5VDC, 1.3A, 1.3A, 300g - 15.41 EUR : acdcshop.gr


power supplies - Pwr sup.unit pulse, 35.1W, 13.5VDC, -13.5VDC, 1.3A, 1.3A, 300g	Prod code: 17249
PDF	RD-3513

Click to enlarge Pwr sup.unit pulse, 35.1W, 13.5VDC, -13.5VDC, 1.3A, 1.3A, 300g

Price:	15.41 €
VAT:	3.70 €
Final price with tax:	19.11 €
Amount:
Long delivery time Long delivery time

Specifications
Manufacturer	MEAN WELL
Pwr sup. unit type	switched-mode
Kind of power supply	modular
Power	35.1W
Output voltage	13.5V DC
Output voltage 2	13.5V DC
Output current	1.3 (0.3...2)A
Output current 2	1.3 (0.2...1.5)A
Supply voltage	88...264V AC, 125...373V DC
Weight	300g
Electrical connection	terminal block
Protection	overload, voltage growth, short-circuit
Mounting	for building in
Number of outputs	2
Operating temperature	25...70°C
Body dimensions	99 x 82 x 36mm
Power supply/converter features	rated parameters obtained at full load
Series	RD-35
Efficiency	80%
Case type	932A
Associated items	DRL-01, DRP-03A

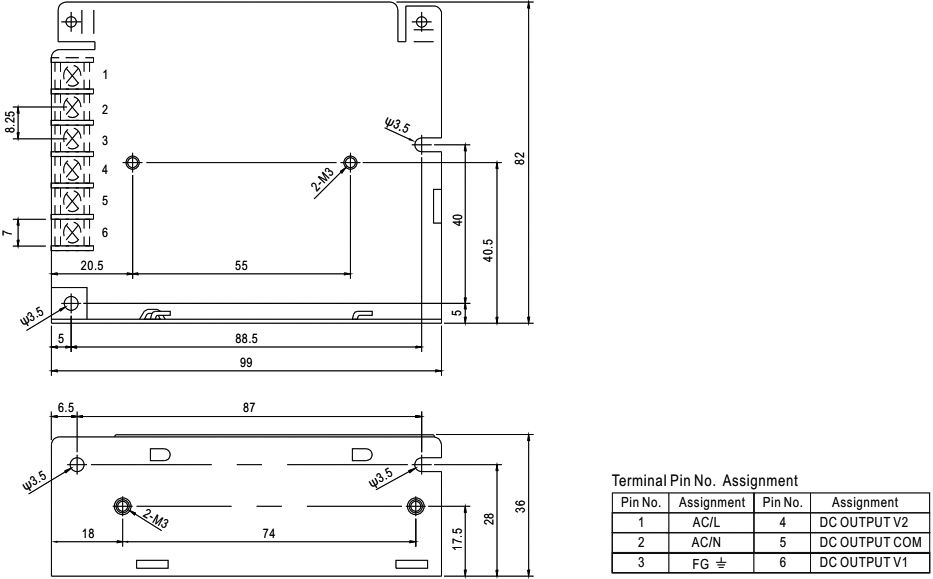

Dimensions	VIEW

Availability: With order
