Τροφοδοτικό - Power supply switching, buffer,for DIN rail, 180W, 27.6VDC, 4.5A

Κωδικός: 42464

pVersion=0046&contRep=ZT&docId=005056AB281E1EDE818C2FBABE42A0D5&compId=DRC-180-spec.pdf PDF

DRC-180B

Τιμή χωρίς ΦΠΑ:  86.81 €
Αξία ΦΠΑ:  20.83 €
Τελική με ΦΠΑ:  107.64 €
Ποσότητα:
* Αποστολή σε 2-3 εργάσιμες ημέρες.
Specifications
ManufacturerMEAN WELL
Type of power supplyswitching
Power0.18kW
Output voltage27.6V DC
Output voltage 227.6V DC
Output current4.5A
Electrical connectionterminal block
Mountingfor DIN rail mounting
Body dimensions63x125.2x115mm
Number of outputs2
Operating temperature-20...70°C
Efficiency90%
Manufacturer seriesDRC-180
Output current 22A
Caution!rated parameters obtained at full load
Kind of power supplybuffer, for DIN rail
Protectionanti-overload OPP, anti-overvoltage OVP, battery polarity, discharge below, overheating OTP, short circuit protection SCP
Additional functions
  • LED status indicator
  • UPS

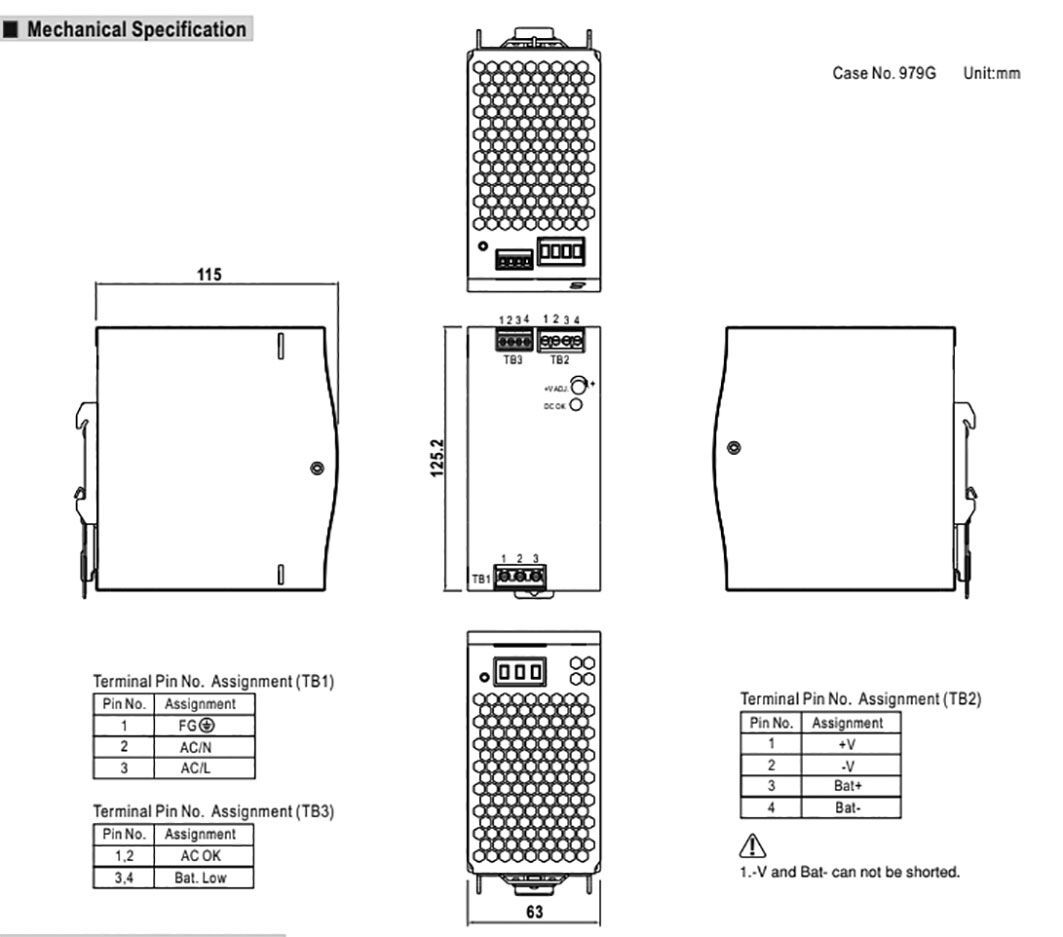

Dimensions VIEW
Διαθεσιμότητα: Με παραγγελία
