Specifications |
| Manufacturer |
MEAN WELL |
| Type of power supply |
switched-mode |
| Kind of power supply |
modular |
| Power |
150W |
| Output current |
12.5A |
| Number of outputs |
1 |
| Body dimensions |
159x97x30mm |
| Weight |
480g |
| Operating temperature |
-30...70°C |
| Electrical connection |
terminal block |
| Mounting |
for building in |
| Protection |
overheating, overload, short-circuit, voltage growth |
| Efficiency |
87.5% |
| Series |
LRS-150 |
| Kind of case |
241A |
| Supply voltage |
85...132 / 170...264V AC, 240...370V DC |
| Output voltage |
10.2...13.8V DC, 12V DC |

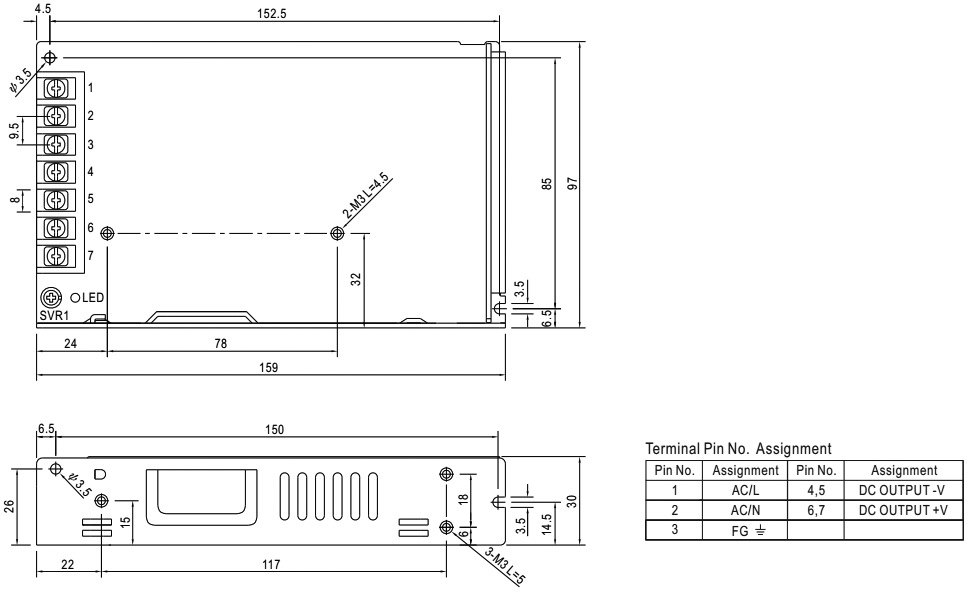

| Dimensions |
 VIEW |
| Gross weight |
444.1 g |
| |
Power supply/converter features
- AC input range selectable by switch
- no load power consumption <0,5W
- rated parameters obtained at full load
|
|
