Τροφοδοτικό DIN - Power supply switched-mode, 76.8W, 24VDC, 24....28VDC, 3.2A, 510g

Κωδικός: 39207

NDR-75-24 PDF

NDR-75-24

Τιμή χωρίς ΦΠΑ:  27.00 €
Αξία ΦΠΑ:  6.48 €
Τελική με ΦΠΑ:  33.48 €
Ποσότητα:
* Αποστολή σε 2-3 εργάσιμες ημέρες.
Specifications
Manufacturer MEAN WELL
Type of power supply switched-mode
Power 76.8W
Output current 3.2A
Supply voltage 90...264V AC,   127...370V DC
Electrical connection terminal block
Mounting DIN
Body dimensions 125.2x102x35mm
Weight 510g
Number of outputs 1
Operating temperature -20...70°C
Protection overheating,   overload,   overvoltage,   short-circuit
Efficiency 88%
Additional functions output voltage correctness indication
Power supply/converter features rated parameters obtained at full load
Series NDR-75
Output voltage 24V DC,   24...28V DC

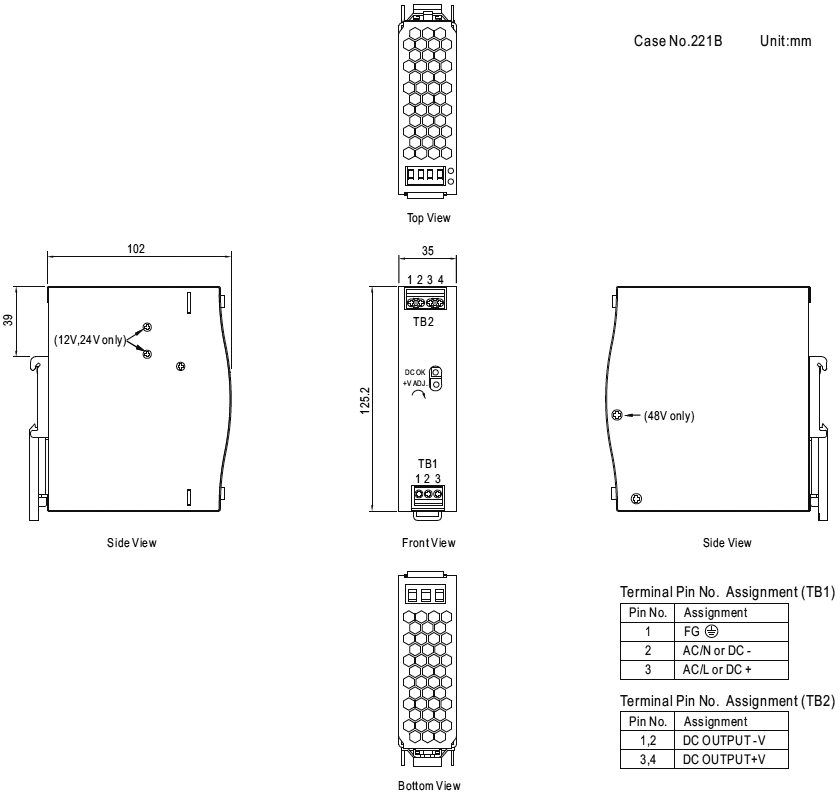

Dimensions  VIEW
Gross weight 466.5 g

Διαθεσιμότητα: Με παραγγελία
