Din rail power supply - Power supply switched-mode, 480W, 48VDC, 10A, 480....780VDC, 1.51kg

Prod code: 39539

TDR-480-48 PDF

TDR-480-48

Price:  130.62 €
VAT:  31.35 €
Final price with tax:  161.97 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer MEAN WELL
Type of power supply switched-mode
Power 480W
Output voltage 48V DC
Output current 10A
Three-phase power supply voltages range 3 x 340...550V AC
Electrical connection terminal block
Mounting DIN
Body dimensions 85.5x125.2x128.5mm
Weight 1.51kg
Number of outputs 1
Operating temperature -30...70°C
Protection anti-overvoltage OVP,   overheating OTP,   short circuit protection SCP
Efficiency 93%
Power supply/converter features rated parameters obtained at full load
Series TDR-480
Kind of case 984E

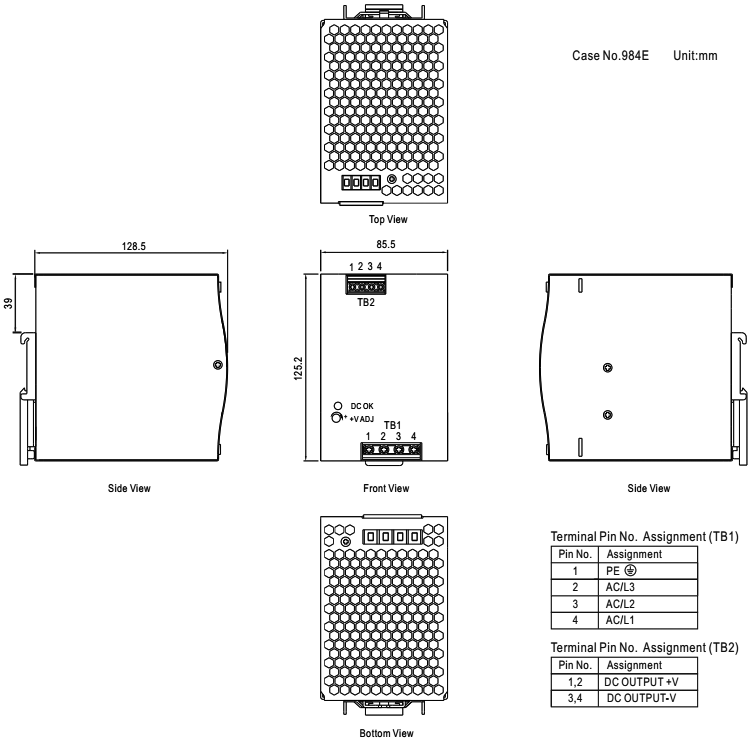

Dimensions  VIEW
Gross weight 1528 g

Supply voltage
  • 480...780V DC
Additional functions
  • active PFC
  • output voltage correctness indication (NO contact)
Availability: With order
