Potentiometer mounting, single turn, vertical, 470Ω, 0.15W, ±20% - 0.27 EUR : acdcshop.gr


Trimmer - Potentiometer mounting, single turn, vertical, 470Ω, 0.15W, ±20%	Prod code: 32239
PDF	CA9H-470R

Click to enlarge Potentiometer mounting, single turn, vertical, 470Ω, 0.15W, ±20%

Price:	0.27 €
VAT:	0.06 €
Final price with tax:	0.33 €
Amount:
Usually shipped within 1 business day.Usually shipped within 1 business day.

Specifications
Manufacturer	ACP
Type of potentiometer	mounting
Kind of potentiometer	single turn, vertical
Resistance	470Ω
Power	0.15W
Tolerance	±20%
Characteristics	linear
Potentiometer series	CA9H
Potentiometer standard	9mm
Mechanical rotation angle	240 ±5°
Torque	0,4...2Ncm
Max. operating voltage	200V
Operating temperature	25...70°C
Mounting	THT
Terminal pitch	5x2.5mm
Track material	carbon
Electrical rotation angle	220 ±20°
Body dimensions	10x10x5mm
Potentiometer features	rectangle hole suitable for screwdriver

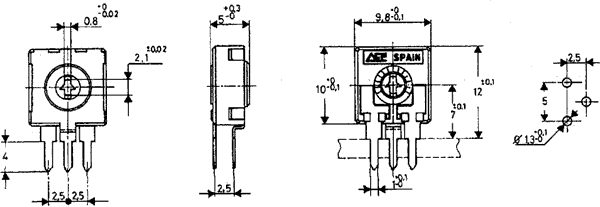

Dimensions	VIEW

Availability: On stock
