--- - Potentiometer mounting, single turn, vertical, 1kΩ, 0.15W, ±20%

Κωδικός: 21535

CA9H-1K PDF

CA9H-1K

Τιμή χωρίς ΦΠΑ:  0.25 €
Αξία ΦΠΑ:  0.06 €
Τελική με ΦΠΑ:  0.31 €
Ποσότητα:
* Αποστολή σε 1 εργάσιμη ημέρα.
Specifications
Manufacturer ACP
Potentiometer type mounting
Potentiometer kind single turn, vertical
Resistance 1kΩ
Power 0.15W
Tolerance 20%
Characteristics linear
Potentiometer series CA9H
Potentiometer standard 9mm
Mechanical rotation angle 240 ±5°
Torque 0,4...2Ncm
Max. operating voltage 200V
Operating temperature 25...70°C
Mounting THT
Terminal pitch 5x2.5mm
Track material carbon
Electrical rotation angle 220 ±20°
Body dimensions 10 x 10 x 5mm
Potentiometer features rectangle hole suitable for screwdriver

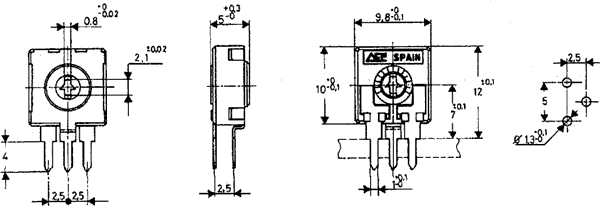

Dimensions  VIEW

Διαθεσιμότητα: Αμεσα
