Terminal Blocks - Pluggable terminal block socket male 5.08mm THT ways 3 15A

Prod code: 12103

TBG-5-KB-3P/GN

Price:  0.24 €
VAT:  0.06 €
Final price with tax:  0.29 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer NINIGI
Connector type pluggable terminal block
Connector socket
Connector type male
Connector variant without side walls
Spatial orientation angled 90
Contacts pitch 5.08mm
Number of ways 3
Contact plating tinned
Rated current 15A
Flammability rating UL94V-0
Colour green
Contact material brass
Rated voltage 300V
Body material polyamide
Electrical mounting THT
Connectors features assembling possibility
Length 15.24mm
Height 8mm
Operating temperature 40...105C
Depth 12.3mm
Soldering temperature 250C / 5 s

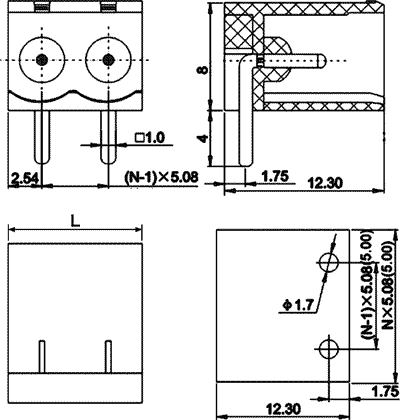

Dimensions  VIEW

Availability: On stock
