Terminal Blocks - Pluggable terminal block plug female 2.5mm2 5.08mm on cable

Κωδικός: 12094

TBW-5-8P/GN

Τιμή χωρίς ΦΠΑ:  1.72 €
Αξία ΦΠΑ:  0.41 €
Τελική με ΦΠΑ:  2.14 €
Ποσότητα:
* Αποστολή σε 1 εργάσιμη ημέρα.
Specifications
Manufacturer NINIGI
Connector type pluggable terminal block
Connector plug
Connector type female
Max cable section 2.5mm2
Contacts pitch 5.08mm
Number of ways 8
Contact plating tinned
Rated current 15A
Flammability rating UL94V-0
Colour green
Contact material brass
Rated voltage 300V
Body material polyamide
Electrical mounting screw terminal
Mechanical mounting for cable
Stripped wire length 8mm
Length 40.64mm
Height 15.2mm
Operating temperature 40...105°C
Depth 17.7mm

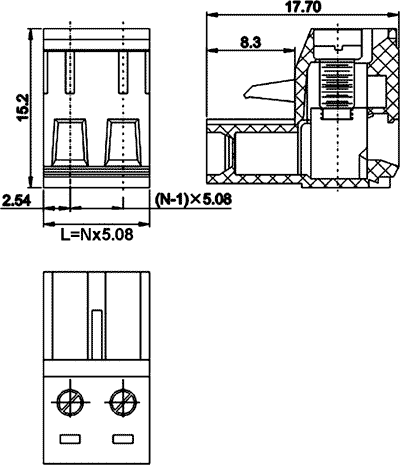

Dimensions  VIEW

Διαθεσιμότητα: Αμεσα
