Limit Switch - Microswitch with lever with roller simulation SPDT 1A/125VAC

Κωδικός: 14915

DM102P303 PDF

DM102P303

Τιμή χωρίς ΦΠΑ:  0.62 €
Αξία ΦΠΑ:  0.15 €
Τελική με ΦΠΑ:  0.77 €
Ποσότητα:
* Αποστολή σε 1 εργάσιμη ημέρα.
Specifications
Manufacturer CANAL ELECTRONIC
Switch type microswitch
Switches features with lever with roller simulation
Contacts configuration SPDT
AC contacts rating 1 A / 125 VAC
Switching method ON-(ON)
Stable positions number 1-position
Sealing IP40
Leads for PCB, straight
Body dimensions 12.8 x 5.8 x 6.5mm
Mechanical durability 1000000cycles
Operating temperature 25...65°C
Switching torque 0.7N
Lever length 14mm
Electrical life 30000cycles
Max. contact resistance: 50mΩ
Terminal pitch 5.08mm
Terminals plating silver plated
Contact material silver alloy
Terminals material nickel

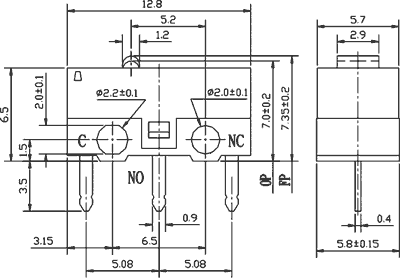

Dimensions  VIEW

Διαθεσιμότητα: Αμεσα
