Microswitch SNAP ACTION, 0.1A/6VDC, with lever, SPST-NO, Pos 2 - 0.90 EUR : acdcshop.gr


Limit Switch - Microswitch SNAP ACTION, 0.1A/6VDC, with lever, SPST-NO, Pos 2	Prod code: 42603
PDF	D2FS-FL-N

Click to enlarge Microswitch SNAP ACTION, 0.1A/6VDC, with lever, SPST-NO, Pos 2

Price:	0.90 €
VAT:	0.22 €
Final price with tax:	1.12 €
Amount:
Usually shipped within 1 business day.Usually shipped within 1 business day.

Specifications
Manufacturer	OMRON Electronic Components
Type of switch	microswitch SNAP ACTION
DC contacts rating @R	0.1A / 6V DC
Switches features	with lever
Contacts configuration	SPST-NO
Max. contact resistance:	100mΩ
Switching method	OFF-(ON)
Number of positions	2
Manufacturer series	D2FS
Stable positions number	1
IP rating	IP40
Body dimensions	12.8x6.5x5.8mm
Mechanical durability	100000 cycles
Operating temperature	-20...70°C
Operating Force	0.25N
Lever length	10.8mm
Electrical life	10000 cycles
Min. insulation resistance	0.1GΩ
Terminal pitch	5.08mm
Contact material	silver
Body material	plastic
Key stroke	0.5mm
Actuator material	steel
Leads	for PCB, straight

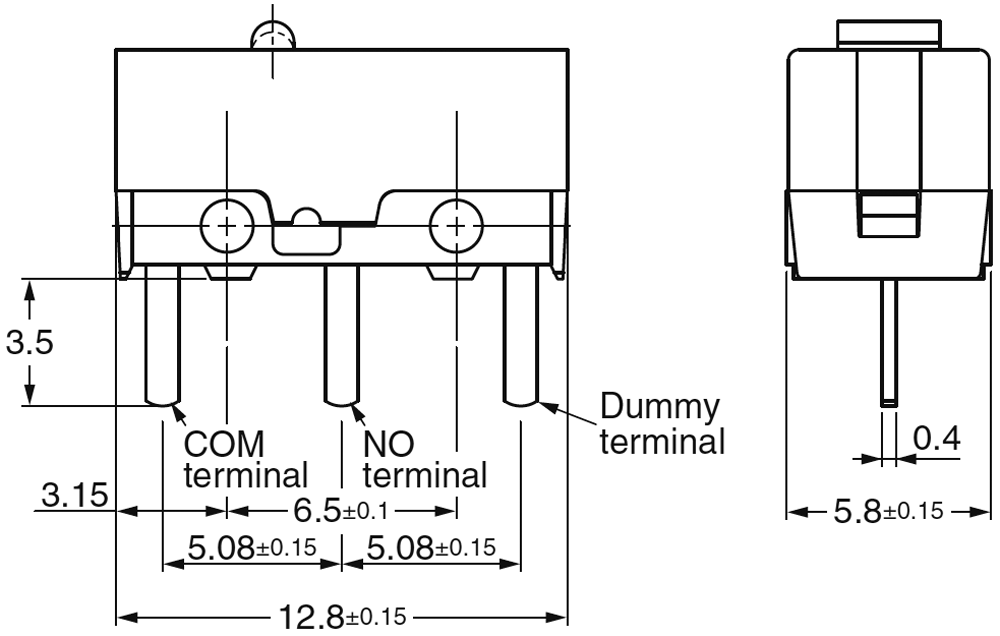

Dimensions	VIEW

Availability: On stock
