Limit Switch - Limit switch, adjustable lever R 90mm, metal roller Ø17,5mm

Κωδικός: 37870

WL-5108 PDF

WL-5108

Τιμή χωρίς ΦΠΑ:  23.05 €
Αξία ΦΠΑ:  5.53 €
Τελική με ΦΠΑ:  28.59 €
Ποσότητα:
* Αποστολή σε 2-3 εργάσιμες ημέρες.
Specifications
Manufacturer HIGHLY
Type of sensor limit switch
Kind of actuator adjustable lever R 90mm, metal roller Ø17,5mm
Output configuration NO + NC
Contact current max. 10A
Switched voltage max. 250V AC,   max. 250V DC
Connection M20
IP rating IP64
Body dimensions 72.3x40x41.5mm
Number of mounting holes 4
Operating temperature -25...70°C
Body material metal
AC contacts rating @R 10A / 125V AC
DC contacts rating @R 0.4A / 250V DC
Mounting holes pitch 30.2/58.7mm

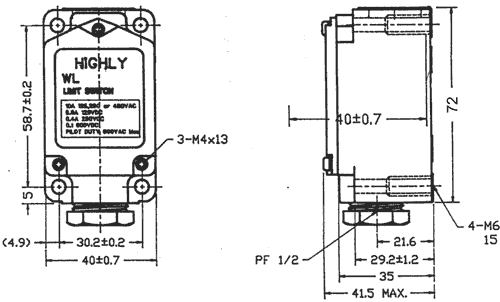

Dimensions  VIEW
Gross weight 298.1 g

Διαθεσιμότητα: Με παραγγελία
