Heatsinks - Heatsink, U type 22K/W 9,53mm, blackened TO220,TO202

Prod code: 7753

D02PA PDF

D02PA

Price:  0.68 €
VAT:  0.16 €
Final price with tax:  0.85 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer STONECOLD
Heatsink type moulded
Heatsink shape U
Application TO202, TO220
Colour black
Length 19.05mm
Width 13.21mm
Height 9.53mm
Thermal resistance 22K/W
Material aluminium
Material finishing anodized
Mounting soldered, screwed

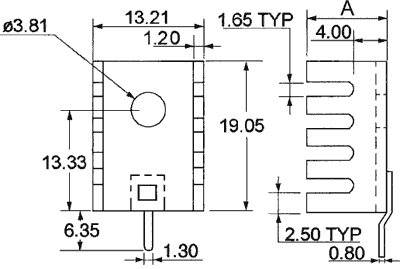

Dimensions  VIEW

Availability: On stock
