Heatsinks - Heatsink black finished L=19mm 26,8K/W TO220 clip mount

Prod code: 7771

HS-010 PDF

HS-010

Price:  0.48 €
VAT:  0.12 €
Final price with tax:  0.60 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer STONECOLD
Heatsink type moulded
Application TO220
Colour black
Length 19mm
Width 12.8mm
Height 12.7mm
Thermal resistance 26.8K/W
Material aluminium
Material finishing anodized
Mounting clip-on"

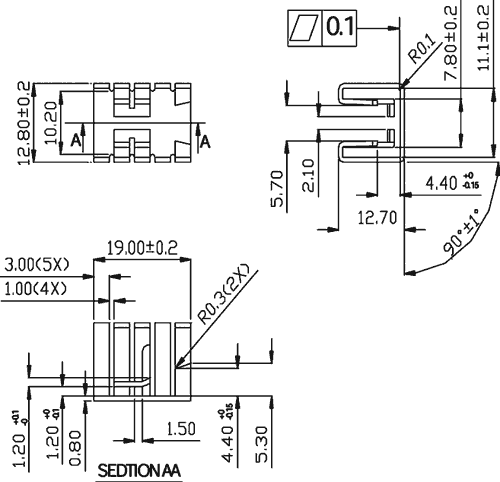

Dimensions  VIEW

Availability: On stock
