Fan DC - Fan 120x120x38 ball DC24V signal wire R type

Prod code: 8946

EEC0382B1-F99 PDF

EEC0382B1-F99

Price:  19.18 €
VAT:  4.60 €
Final price with tax:  23.78 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer SUNON
Fan type DC
Fan kind axial
Supply voltage 24V DC
Operating voltage 10...27.6V
Fan dimensions 120x120x38mm
Power consumption 9.6W
Rated current 0.4A
Fans efficiency 234.4m3/h
Noise level 48dBA
Bearing type ball bearing
Signal output R type
Rotational rate/speed 3100 (±10%)rpm
Weight 214g
Current and power consumption tolerance 15%
Min. insulation resistance 10MΩ
Fan material thermoplastic
Enclosure material thermoplastic
Insulation class A
Operating temperature 10...70°C
Leads 3 leads
Static pressure 9.14mm H2O
Flammability rating UL94V-0
Fan motor brushless DC motor
Cable length 330mm
Wire size 24AWG
Additional functions Autorestart
Configuration of application  VIEW

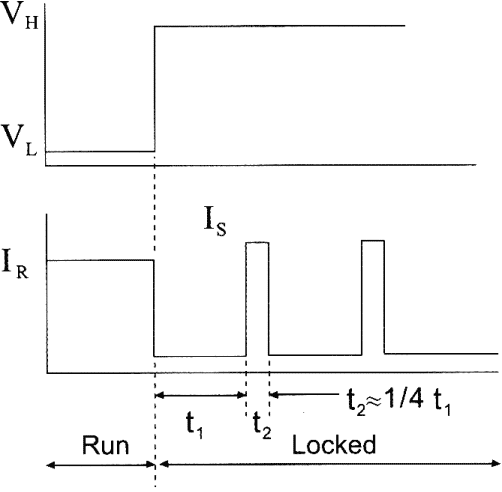

Time curves  VIEW

Availability: With order
