Connector D-sub - D-Sub, PIN 9, plug, DFR, male, IDC, for ribbon cable, gold flash

Κωδικός: 30816

L17DEFRA09P PDF

L17DEFRA09P

Τιμή χωρίς ΦΠΑ:  2.23 €
Αξία ΦΠΑ:  0.54 €
Τελική με ΦΠΑ:  2.77 €
Ποσότητα:
* Αποστολή σε 1 εργάσιμη ημέρα.
Specifications
Manufacturer AMPHENOL
Type of connector D-Sub
Number of pins 9
Connector plug
Connector series DFR
Kind of connector male
Electrical mounting IDC
Mechanical mounting for ribbon cable
Operating temperature -40...125°C
Contact material brass
Contact plating gold flash
Current rating 5A
Max. contact resistance: 20mΩ
Insulator material thermoplastic
Rated voltage 250V
Ribbon cable pitch 1.27mm

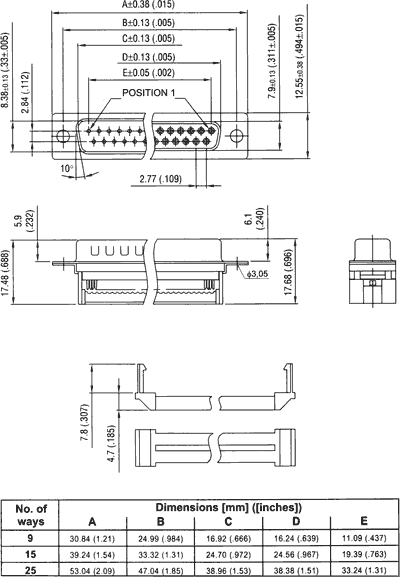

Dimensions  VIEW
Gross weight 4.967 g

Διαθεσιμότητα: Αμεσα
