DC-DC Converter - Converter DC/DC, 5W, Uin 4.5÷7V, Uout 15VDC, Uout2 -15VDC, DIP24

Prod code: 37634

TEN5-0523 PDF

TEN5-0523

Price:  38.01 €
VAT:  9.12 €
Final price with tax:  47.13 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer TRACO POWER
Type of converter DC/DC
Power 5W
Input voltage 4.5...7V
Output voltage 15V DC
Output voltage 2 -15V DC
Output current 200mA
Output current 2 -200mA
Case DIP24
Body dimensions 31.8x20.3x10.2mm
Weight 16.9g
Efficiency 82%
Operating temperature -40...85°C
Switching frequency 300kHz
Protection overload,   short-circuit
Insulation voltage 1500V
Series TEN5
Number of outputs 2

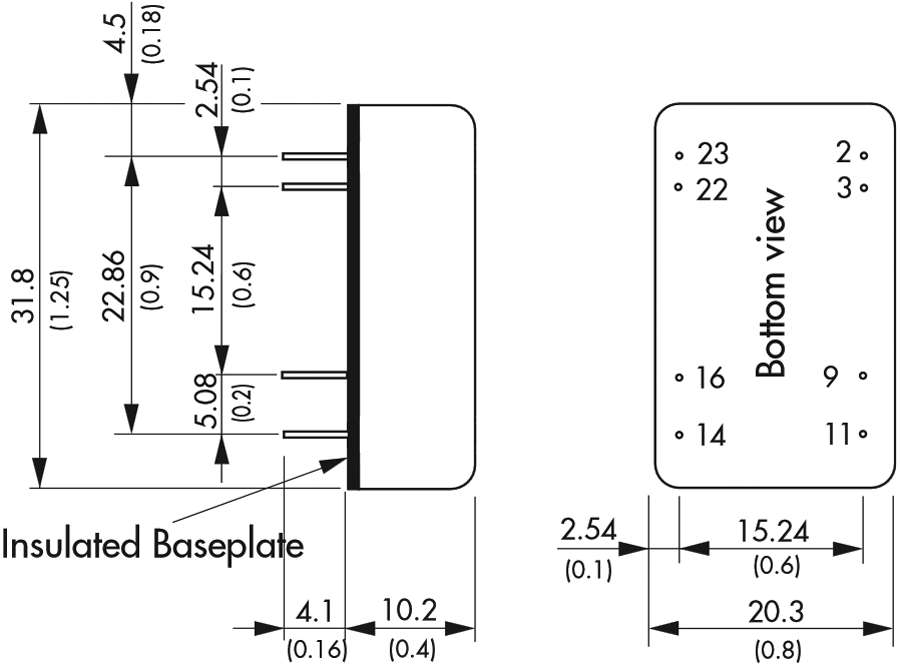

Dimensions  VIEW
Gross weight 16.51 g

Availability: With order
