DC-DC Converter - Converter DC/DC, 2W, Uin 21.6....26.4V, Uout 15VDC, Uout2 -15VDC

Prod code: 36683

MDD02N-15 PDF

MDD02N-15

Price:  7.84 €
VAT:  1.88 €
Final price with tax:  9.72 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer MEAN WELL
Type of converter DC/DC
Power 2W
Input voltage 21.6...26.4V
Output voltage 15V DC
Output voltage 2 -15V DC
Output current 67mA
Output current 2 67mA
Case SIP7
Body dimensions 19.5x9.8x12.5mm
Weight 4.2g
Efficiency 82%
Operating temperature -40...85°C
Switching frequency 100kHz
Protection short-circuit
Insulation voltage 6000V DC
Mounting THT
Series MDD02
Number of outputs 2
Application medical applications

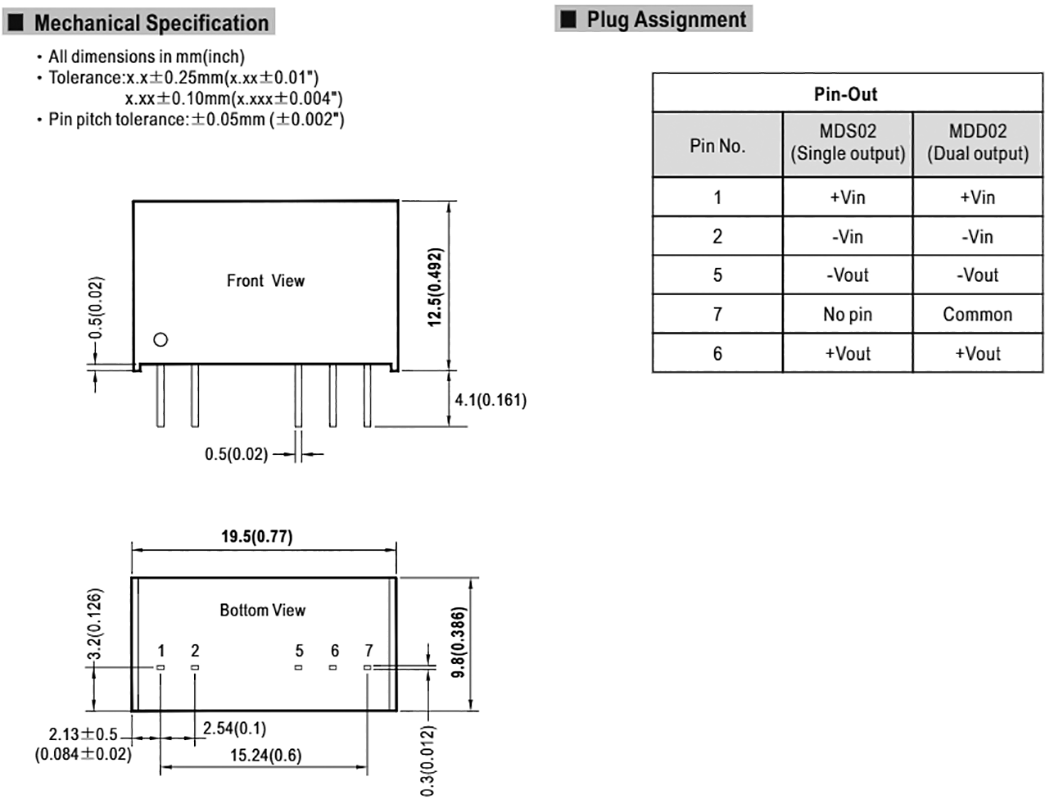

Dimensions  VIEW
Gross weight 4.245 g

Availability: On stock
