Fuse - Circuit breaker, 400VAC, Inom 4A, Poles no 3, DIN, Charact B, 6kA

Prod code: 19668

CLS6-B4/3 PDF

CLS6-B4/3

Price:  29.36 €
VAT:  7.05 €
Final price with tax:  36.40 €
Amount:
Warning Long delivery time
Specifications
Manufacturer EATON ELECTRIC
Type of protection circuit breaker
Rated voltage 400V AC
Current rating 4A
Number of poles 3
Mounting DIN
Characteristics B
Short circuit breaking capacity 6kA
IP rating IP20
Cross section of connecting wires 1...25mm2
Mechanical durability 8000cycles
Thickness of connecting busbars 0.8...2mm
Breaker features visual indication of contacts position

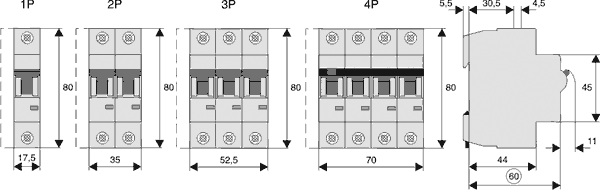

Dimensions  VIEW
Contacts layout  VIEW
Gross weight 334.4 g

Availability: With order
